Fully Automatic Potato Chips Line
We offer a suitable solution for your potato chip production needs. Our advanced equipment is designed to make the process of creating delicious and high-quality potato chips as efficient as possible. Contact us today to learn more about how our equipment can help you take your potato chip production to the next level!
Special Features
- Frying Control Multi-oil inlets ensure steady oil flow, clear the infeed area, allow quick temperature adjustment.
- Continuous Filtration 100% of system oil volume passes through a drum filter every minute for highest oil/product quality.
- Oil Quality Low oil volume + rapid turnover = fresh product, extended shelf life.
- Air Knife Removes excess water from washed slices, lowering energy consumption and extending oil life.
- Compact Design Minimizes space, energy, and water usage for cost-efficient operation.
Technical Specifications (FAPCL Models)
| Model | Output | Edible Oil Holding Capacity | Power Required With Blancher | Power Required Without Blancher | Water Required | Floor Space | Length of Line | Material of Construction |
|---|---|---|---|---|---|---|---|---|
| FAPCL-300 | 300 Kg/Hr | 900 Ltrs | 65 Hp | 52 HP | 2000 Ltrs/Hr | 3000 Sq.Ft. | 140 Ft | AISS-304 |
| FAPCL-500 | 500 Kg/Hr | 1600 Ltrs | 85 HP | 65 Hp | 3500 Ltrs/Hr | 4000 Sq.Ft. | 160 Ft | AISS-304 |
| FAPCL-1000 | 1000 Kg/Hr | 3000 Ltrs | 122 HP | 102 Hp | 6000 Ltrs/Hr | 5000 Sq.Ft. | 160 Ft | AISS-304 |
Locations We Serve (India)
Machine Videos
Machine Components
Efficiently transfers bulk potatoes from containers to the Grader using a Hopper and a modular plastic conveyor belt for precise, uniform output.

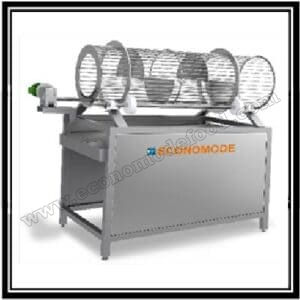

Raw potato sorting equipment that separates smaller-than-average potatoes, reducing small slices during slicing and protecting oil quality.

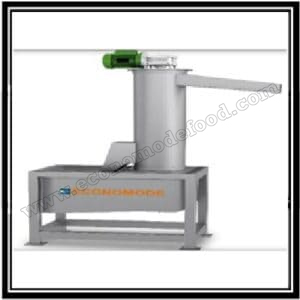

Washes potatoes in a hopper using rotary action from a vertical screw elevator; gravity separates stones from floating potatoes; impurities drained to protect downstream equipment.
Continuous peeler using rotating abrasive rollers (left/right-hand combination) with a Rotary Gate to control peeling percentage.
Stainless steel rollers gently tumble potatoes for manual inspection/defect removal before the Single Potato Feed Conveyor.
Maintains consistent potato level via a vibrating fork sensor; feeds the slicer auger (Singulator); VFD-adjustable speed.
Two counter-rotating augers ensure a uniform single-row supply of potatoes to the slicer inlet.
Cuts uniform slices via centrifugal force from a rotating impeller; 8 cutting stations; requires continuous fresh water at 9.5–11.5 LPM.
Two rows of nozzles spray fresh water to remove excess starch and deliver uniformly clean slices.

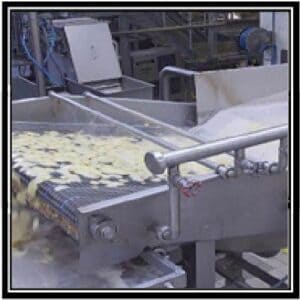

Feeds slices to the Blancher; filtered water recirculated with anti-foaming agent; overflow goes to starch recovery; treated water returns to Peeler.
Heats water to 75–85°C via Heat Exchanger to reduce sugar content and minimize defective chips; includes filtration system and fresh-water spray nozzle.
Air Knife (min. 20 bar) dries top surface; Air Sweep (min. -20 bar vacuum) dries bottom; reduces surface moisture to ~6–8%.
Engineered vibrators sieve small particles and separate chips before the fryer.
Controlled-temperature oil bath; paddles prevent clustering; submerger completes frying; take-out conveyor removes fried chips. Features: Oil Storage System & Heat Exchanger, PLC Control Panel, Oil Level Control & Management, Laminar Oil Flow, Optimal Oil Turnover Ratio.
Receives fried chips for inspection/manual sorting and slight cooling before flavoring.
Sieves small particles and separates chips before flavoring.
3 parts: Vibratory conveyors V1, V2, V3.
Stores and dispenses seasoning via rotating screw to a scarf feeder (vibrator); multi-dimensional adjustable tray.
Zig-Zag rotating drum ensures uniform flavor coverage on both sides; mirrored interior minimizes wastage and eases cleaning.
Touch-screen control of multiple machines/processes; pre-programmed menus; mounted near the fryer.
Fully Automatic Potato Chips Line
Full Product Assembly
Click on the image below to view the full high-resolution assembly drawing and layout of the machine.
